Probabilistic Forecasting with aeon#

Overview of this notebook#

  • quick start - probabilistic forecasting

  • disambiguation - types of probabilistic forecasts

  • details: probabilistic forecasting interfaces

  • metrics for, and evaluation of probabilistic forecasts

  • advanced composition: pipelines, tuning, reduction

  • extender guide

Quick Start - Probabilistic Forecasting with aeon#

… works exactly like the basic forecasting workflow, replace predict by a probabilistic method!

[1]:

import warnings

warnings.filterwarnings("ignore")
from aeon.datasets import load_airline
from aeon.forecasting.arima import ARIMA

# step 1: data specification
y = load_airline()
# step 2: specifying forecasting horizon
fh = [1, 2, 3]
# step 3: specifying the forecasting algorithm
forecaster = ARIMA()
# step 4: fitting the forecaster
forecaster.fit(y, fh=[1, 2, 3])
# step 5: querying predictions
y_pred = forecaster.predict()

# for probabilistic forecasting:
#   call a probabilistic forecasting method after or instead of step 5
y_pred_int = forecaster.predict_interval(coverage=0.9)
y_pred_int

[1]:
Coverage
0.9
lower upper
1961-01 371.535093 481.554608
1961-02 344.853206 497.712761
1961-03 324.223996 508.191104

probabilistic forecasting methods in ``aeon``:

  • forecast intervals - predict_interval(fh=None, X=None, coverage=0.90)

  • forecast quantiles - predict_quantiles(fh=None, X=None, alpha=[0.05, 0.95])

  • forecast variance - predict_var(fh=None, X=None, cov=False)

  • distribution forecast - predict_proba(fh=None, X=None, marginal=True)

To check which forecasters in aeon support probabilistic forecasting, use the registry.all_estimators utility and search for estimators which have the capability:pred_int tag (value True).

For composites such as pipelines, a positive tag means that logic is implemented if (some or all) components support it.

[2]:

from aeon.registry import all_estimators

all_estimators(
    "forecaster", filter_tags={"capability:pred_int": True}, as_dataframe=True
)

[2]:
name estimator
0 ARIMA <class 'aeon.forecasting.arima.ARIMA'>
1 AutoARIMA <class 'aeon.forecasting.arima.AutoARIMA'>
2 AutoETS <class 'aeon.forecasting.ets.AutoETS'>
3 BATS <class 'aeon.forecasting.bats.BATS'>
4 BaggingForecaster <class 'aeon.forecasting.compose._bagging.Bagg...
5 ColumnEnsembleForecaster <class 'aeon.forecasting.compose._column_ensem...
6 ConformalIntervals <class 'aeon.forecasting.conformal.ConformalIn...
7 DynamicFactor <class 'aeon.forecasting.dynamic_factor.Dynami...
8 ForecastX <class 'aeon.forecasting.compose._pipeline.For...
9 ForecastingGridSearchCV <class 'aeon.forecasting.model_selection._tune...
10 ForecastingPipeline <class 'aeon.forecasting.compose._pipeline.For...
11 ForecastingRandomizedSearchCV <class 'aeon.forecasting.model_selection._tune...
12 MockForecaster <class 'aeon.testing.mock_estimators._mock_for...
13 MockUnivariateForecasterLogger <class 'aeon.testing.mock_estimators._mock_for...
14 NaiveForecaster <class 'aeon.forecasting.naive.NaiveForecaster'>
15 NaiveVariance <class 'aeon.forecasting.naive.NaiveVariance'>
16 Permute <class 'aeon.forecasting.compose._pipeline.Per...
17 Prophet <class 'aeon.forecasting.fbprophet.Prophet'>
18 SquaringResiduals <class 'aeon.forecasting.squaring_residuals.Sq...
19 StatsForecastAutoARIMA <class 'aeon.forecasting.statsforecast.StatsFo...
20 TBATS <class 'aeon.forecasting.tbats.TBATS'>
21 ThetaForecaster <class 'aeon.forecasting.theta.ThetaForecaster'>
22 TransformedTargetForecaster <class 'aeon.forecasting.compose._pipeline.Tra...
23 UnobservedComponents <class 'aeon.forecasting.structural.Unobserved...
24 VAR <class 'aeon.forecasting.var.VAR'>
25 VECM <class 'aeon.forecasting.vecm.VECM'>

What is probabilistic forecasting?#

Intuition#

  • produce low/high scenarios of forecasts

  • quantify uncertainty around forecasts

  • produce expected range of variation of forecasts

Interface view#

Want to produce “distribution” or “range” of forecast values,

at time stamps defined by forecasting horizon fh

given past data y (series), and possibly exogeneous data X

Input, to fit or predict: fh, y, X

Output, from predict_probabilistic: some “distribution” or “range” object

Big caveat: there are multiple possible ways to model “distribution” or “range”!

Used in practice and easily confused! (and often, practically, confused!)

Formal view (endogeneous, one forecast time stamp)#

Let \(y(t_1), \dots, y(t_n)\) be observations at fixed time stamps \(t_1, \dots, t_n\).

(we consider \(y\) as an \(\mathbb{R}^n\)-valued random variable)

Let \(y'\) be a (true) value, which will be observed at a future time stamp \(\tau\).

(we consider \(y'\) as an \(\mathbb{R}\)-valued random variable)

We have the following “types of forecasts” of \(y'\):

Name

param

prediction/estimate of

aeon

point forecast

conditional expectation \(\mathbb{E}[y'\|y]\)

predict

variance forecast

conditional variance \(Var[y'\|y]\)

predict_var

quantile forecast

\(\alpha\in (0,1)\)

\(\alpha\)-quantile of \(y'\|y\)

predict_quantiles

interval forecast

\(c\in (0,1)\)

\([a,b]\) s.t. \(P(a\le y' \le b\| y) = c\)

predict_interval

distribution forecast

the law/distribution of \(y'\|y\)

predict_proba

Notes:

  • different forecasters have different capabilities!

  • metrics, evaluation & tuning are different by “type of forecast”

  • compositors can “add” type of forecast! Example: bootstrap

More formal details & intuition:#

  • a “point forecast” is a prediction/estimate of the conditional expectation \(\mathbb{E}[y'|y]\). Intuition: “out of many repetitions/worlds, this value is the arithmetic average of all observations”.

  • a “variance forecast” is a prediction/estimate of the conditional expectation \(Var[y'|y]\). Intuition: “out of many repetitions/worlds, this value is the average squared distance of the observation to the perfect point forecast”.

  • a “quantile forecast”, at quantile point \(\alpha\in (0,1)\) is a prediction/estimate of the \(\alpha\)-quantile of \(y'|y\), i.e., of \(F^{-1}_{y'|y}(\alpha)\), where \(F^{-1}\) is the (generalized) inverse cdf = quantile function of the random variable \(y'|y\). Intuition: “out of many repetitions/worlds, a fraction of exactly \(\alpha\) will have equal or smaller than this value.”

  • an “interval forecast” or “predictive interval” with (symmetric) coverage \(c\in (0,1)\) is a prediction/estimate pair of lower bound \(a\) and upper bound \(b\) such that \(P(a\le y' \le b| y) = c\) and \(P(y' \gneq b| y) = P(y' \lneq a| y) = (1 - c) /2\). Intuition: “out of many repetitions/worlds, a fraction of exactly \(c\) will be contained in the interval \([a,b]\), and being above is equally likely as being below”.

  • a “distribution forecast” or “full probabilistic forecast” is a prediction/estimate of the distribution of \(y'|y\), e.g., “it’s a normal distribution with mean 42 and variance 1”. Intuition: exhaustive description of the generating mechanism of many repetitions/worlds.

Notes:

  • lower/upper of interval forecasts are quantile forecasts at quantile points \(0.5 - c/2\) and \(0.5 + c/2\) (as long as forecast distributions are absolutely continuous).

  • all other forecasts can be obtained from a full probabilistic forecasts; a full probabilistic forecast can be obtained from all quantile forecasts or all interval forecasts.

  • there is no exact relation between the other types of forecasts (point or variance vs quantile)

  • in particular, point forecast does not need to be median forecast aka 0.5-quantile forecast. Can be \(\alpha\)-quantile for any \(\alpha\)!

Frequent confusion in literature & python packages: * coverage c vs quantile \alpha * coverage c vs significance p = 1-c * quantile of lower interval bound, p/2, vs p * interval forecasts vs related, but substantially different concepts: confidence interval on predictive mean; Bayesian posterior or credibility interval of the predictive mean * all forecasts above can be Bayesian, confusion: “posteriors are different” or “have to be evaluted differently”

Probabilistic forecasting interfaces in aeon#

This section:

  • walkthrough of probabilistic predict methods

  • use in update/predict workflow

  • multivariate and hierarchical data

All forecasters with tag capability:pred_int provide the following:

  • forecast intervals - predict_interval(fh=None, X=None, coverage=0.90)

  • forecast quantiles - predict_quantiles(fh=None, X=None, alpha=[0.05, 0.95])

  • forecast variance - predict_var(fh=None, X=None, cov=False)

  • distribution forecast - predict_proba(fh=None, X=None, marginal=True)

Generalities:

  • methods do not change state, multiple can be called

  • fh is optional, if passed late

  • exogeneous data X can be passed

[3]:

import numpy as np

from aeon.datasets import load_airline
from aeon.forecasting.theta import ThetaForecaster

# until fit, identical with the simple workflow
y = load_airline()

fh = np.arange(1, 13)

forecaster = ThetaForecaster(sp=12)
forecaster.fit(y, fh=fh)

[3]:

ThetaForecaster(sp=12)
In a Jupyter environment, please rerun this cell to show the HTML representation or trust the notebook.
On GitHub, the HTML representation is unable to render, please try loading this page with nbviewer.org.
Inputs:
fh - forecasting horizon (not necessary if seen in fit)
coverage, float or list of floats, default=0.9
nominal coverage(s) of the prediction interval(s) queried
Output: pandas.DataFrame
Row index is fh
Column has multi-index:
1st level = variable name from y in fit
2nd level = coverage fractions in coverage
3rd level = string “lower” or “upper”

Entries = forecasts of lower/upper interval at nominal coverage in 2nd lvl, for var in 1st lvl, for time in row

[4]:

coverage = 0.9
y_pred_ints = forecaster.predict_interval(coverage=coverage)
y_pred_ints

[4]:
Coverage
0.9
lower upper
1961-01 418.280121 464.281951
1961-02 402.215881 456.888055
1961-03 459.966113 522.110500
1961-04 442.589309 511.399214
1961-05 443.525027 518.409480
1961-06 506.585814 587.087737
1961-07 561.496768 647.248956
1961-08 557.363322 648.062363
1961-09 477.658056 573.047752
1961-10 407.915090 507.775355
1961-11 346.942924 451.082016
1961-12 394.708221 502.957142

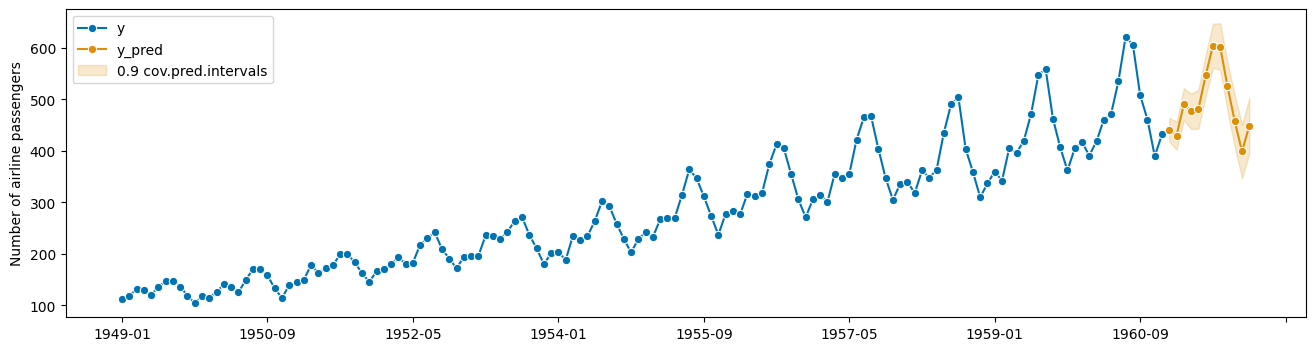

pretty-plotting the predictive interval forecasts:

[5]:

from aeon.visualisation import plot_series

# also requires predictions
y_pred = forecaster.predict()

fig, ax = plot_series(y, y_pred, labels=["y", "y_pred"])
ax.fill_between(
    ax.get_lines()[-1].get_xdata(),
    y_pred_ints["Coverage"][coverage]["lower"],
    y_pred_ints["Coverage"][coverage]["upper"],
    alpha=0.2,
    color=ax.get_lines()[-1].get_c(),
    label=f"{coverage} cov.pred.intervals",
)
ax.legend();
../../_images/examples_forecasting_forecasting_proba_18_0.png

multiple coverages:

[6]:

coverage = [0.5, 0.9, 0.95]
y_pred_ints = forecaster.predict_interval(coverage=coverage)
y_pred_ints

[6]:
Coverage
0.50 0.90 0.95
lower upper lower upper lower upper
1961-01 431.849266 450.712806 418.280121 464.281951 413.873755 468.688317
1961-02 418.342514 440.761421 402.215881 456.888055 396.979011 462.124925
1961-03 478.296822 503.779790 459.966113 522.110500 454.013504 528.063109
1961-04 462.886144 491.102379 442.589309 511.399214 435.998232 517.990291
1961-05 465.613670 496.320837 443.525027 518.409480 436.352089 525.582418
1961-06 530.331440 563.342111 506.585814 587.087737 498.874797 594.798754
1961-07 586.791063 621.954661 561.496768 647.248956 553.282845 655.462879
1961-08 584.116789 621.308897 557.363322 648.062363 548.675556 656.750129
1961-09 505.795123 544.910684 477.658056 573.047752 468.520987 582.184821
1961-10 437.370840 478.319605 407.915090 507.775355 398.349800 517.340645
1961-11 377.660798 420.364142 346.942924 451.082016 336.967779 461.057161
1961-12 426.638370 471.026993 394.708221 502.957142 384.339409 513.325954
Inputs:
fh - forecasting horizon (not necessary if seen in fit)
alpha, float or list of floats, default = [0.1, 0.9]
quantile points at which quantiles are queried
Output: pandas.DataFrame
Row index is fh
Column has multi-index:
1st level = variable name from y in fit
2nd level = quantile points in alpha

Entries = forecasts of quantiles at quantile point in 2nd lvl, for var in 1st lvl, for time in row

[7]:

alpha = [0.1, 0.25, 0.5, 0.75, 0.9]
y_pred_quantiles = forecaster.predict_quantiles(alpha=alpha)
y_pred_quantiles

[7]:
Quantiles
0.10 0.25 0.50 0.75 0.90
1961-01 423.360378 431.849266 441.281036 450.712806 459.201694
1961-02 408.253656 418.342514 429.551968 440.761421 450.850279
1961-03 466.829089 478.296822 491.038306 503.779790 515.247523
1961-04 450.188398 462.886144 476.994261 491.102379 503.800124
1961-05 451.794965 465.613670 480.967253 496.320837 510.139542
1961-06 515.476124 530.331440 546.836776 563.342111 578.197428
1961-07 570.966896 586.791063 604.372862 621.954661 637.778829
1961-08 567.379760 584.116789 602.712843 621.308897 638.045925
1961-09 488.192511 505.795123 525.352904 544.910684 562.513297
1961-10 418.943257 437.370840 457.845222 478.319605 496.747188
1961-11 358.443627 377.660798 399.012470 420.364142 439.581313
1961-12 406.662797 426.638370 448.832681 471.026993 491.002565

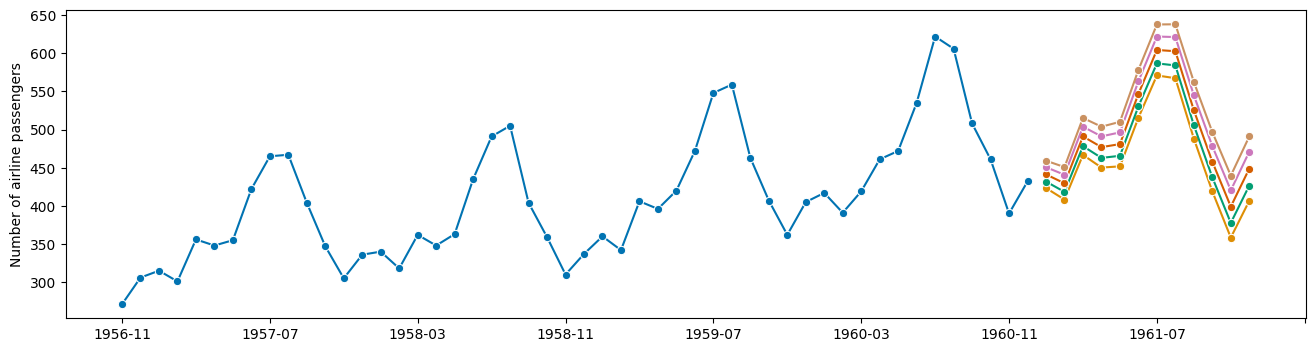

pretty-plotting the quantile interval forecasts:

[8]:

from aeon.visualisation import plot_series

_, columns = zip(*y_pred_quantiles.items())
fig, ax = plot_series(y[-50:], *columns)
../../_images/examples_forecasting_forecasting_proba_25_0.png
Inputs:
fh - forecasting horizon (not necessary if seen in fit)
cov, boolean, default=False
whether covariance forecasts should also be returned (not all estimators support this)
Output: pandas.DataFrame, for cov=False:
Row index is fh
Column is equal to column index of y (variables)

Entries = variance forecast for variable in col, for time in row

[9]:

y_pred_variance = forecaster.predict_var()
y_pred_variance

[9]:
0
1961-01 195.540049
1961-02 276.196509
1961-03 356.852968
1961-04 437.509428
1961-05 518.165887
1961-06 598.822347
1961-07 679.478807
1961-08 760.135266
1961-09 840.791726
1961-10 921.448185
1961-11 1002.104645
1961-12 1082.761105

with covariance, using a forecaster which can return covariance forecasts:

return is pandas.DataFrame with fh indexing rows and columns;
entries are forecast covariance between row and column time
(diagonal = forecast variances)

Using probabilistic forecasts with update/predict stream workflow#

Example: * data observed monthly * make probabilistic forecasts for an entire year ahead * update forecasts every month * start in Dec 1950

[10]:

# 1949 and 1950
y_start = y[:24]
# Jan 1951 etc
y_update_batch_1 = y.loc[["1951-01"]]
y_update_batch_2 = y.loc[["1951-02"]]
y_update_batch_3 = y.loc[["1951-03"]]

[11]:

# now = Dec 1950

# 1a. fit to data available in Dec 1950
#   fh = [1, 2, ..., 12] for all 12 months ahead
forecaster.fit(y_start, fh=1 + np.arange(12))

# 1b. predict 1951, in Dec 1950
forecaster.predict_interval()
# or other proba predict functions

[11]:
Coverage
0.9
lower upper
1951-01 125.707998 141.744251
1951-02 135.554586 154.422381
1951-03 149.921348 171.247998
1951-04 140.807417 164.337362
1951-05 127.941097 153.484993
1951-06 152.968277 180.378548
1951-07 167.193935 196.351356
1951-08 166.316512 197.122153
1951-09 150.425516 182.795561
1951-10 128.623033 162.485285
1951-11 109.567283 144.858705
1951-12 125.641292 162.306217
[12]:

# time passes, now = Jan 1951

# 2a. update forecaster with new data
forecaster.update(y_update_batch_1)

# 2b. make new prediction - year ahead = Feb 1951 to Jan 1952
forecaster.predict_interval()
# forecaster remembers relative forecasting horizon

[12]:
Coverage
0.9
lower upper
1951-02 136.659398 152.695651
1951-03 150.894540 169.762336
1951-04 141.748826 163.075476
1951-05 128.876521 152.406466
1951-06 153.906406 179.450302
1951-07 168.170069 195.580339
1951-08 167.339648 196.497069
1951-09 151.478088 182.283729
1951-10 129.681615 162.051660
1951-11 110.621201 144.483453
1951-12 126.786551 162.077973
1952-01 121.345120 158.010045

repeat the same commands with further data batches:

[13]:

# time passes, now = Feb 1951

# 3a. update forecaster with new data
forecaster.update(y_update_batch_2)

# 3b. make new prediction - year ahead = Feb 1951 to Jan 1952
forecaster.predict_interval()

[13]:
Coverage
0.9
lower upper
1951-03 151.754366 167.790619
1951-04 142.481687 161.349482
1951-05 129.549186 150.875836
1951-06 154.439360 177.969305
1951-07 168.623239 194.167135
1951-08 167.770039 195.180310
1951-09 151.929281 181.086702
1951-10 130.167033 160.972675
1951-11 111.133102 143.503147
1951-12 127.264390 161.126643
1952-01 121.830227 157.121649
1952-02 132.976436 169.641361
[14]:

# time passes, now = Feb 1951

# 4a. update forecaster with new data
forecaster.update(y_update_batch_3)

# 4b. make new prediction - year ahead = Feb 1951 to Jan 1952
forecaster.predict_interval()

[14]:
Coverage
0.9
lower upper
1951-04 143.421741 159.457994
1951-05 130.401488 149.269284
1951-06 155.166803 176.493453
1951-07 169.300650 192.830595
1951-08 168.451755 193.995651
1951-09 152.643333 180.053604
1951-10 130.913435 160.070856
1951-11 111.900919 142.706560
1951-12 128.054402 160.424448
1952-01 122.645052 156.507304
1952-02 133.834107 169.125529
1952-03 149.605277 186.270202

… and so on.

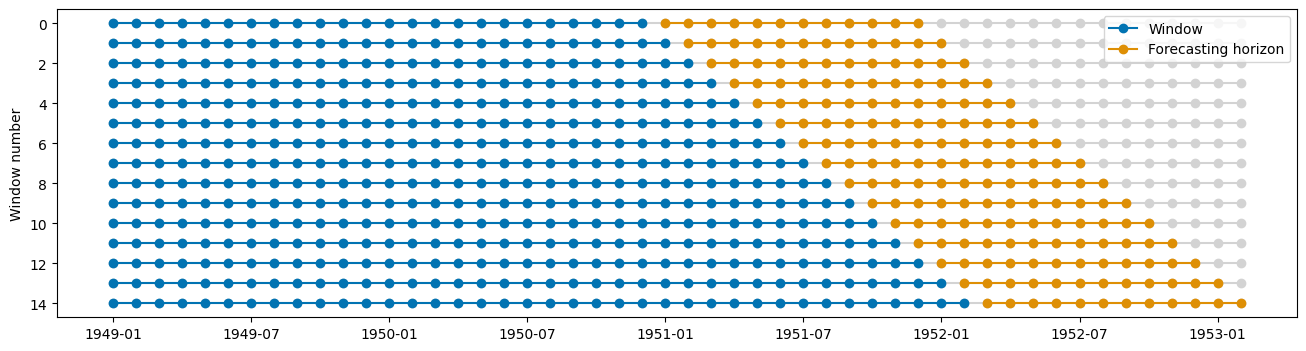

[15]:

from aeon.forecasting.model_selection import ExpandingWindowSplitter
from aeon.visualisation import plot_series_windows

cv = ExpandingWindowSplitter(step_length=1, fh=fh, initial_window=24)
plot_series_windows(y.iloc[:50], cv)

[15]:

(<Figure size 1600x400 with 1 Axes>, <Axes: ylabel='Window number'>)
../../_images/examples_forecasting_forecasting_proba_39_1.png
predict_proba - distribution forecasts aka “full” probabilistic forecasts#
Inputs:
fh - forecasting horizon (not necessary if seen in fit)
marginal, bool, optional, default=True
whether returned distribution is marginal over time points (True), or joint over time points (False)
(not all forecasters support marginal=False)
Output: scipy Distribution object. if marginal=True: batch shape 1D, len(fh) (time); event shape 1D, len(y.columns) (variables)
if marginal=False: event shape 2D, [len(fh), len(y.columns)]
[16]:

from aeon.forecasting.naive import NaiveVariance

forecaster_with_covariance = NaiveVariance(forecaster)
forecaster_with_covariance.fit(y=y, fh=fh)
forecaster_with_covariance.predict_var(cov=True)

[16]:
1961-01 1961-02 1961-03 1961-04 1961-05 1961-06 1961-07 1961-08 1961-09 1961-10 1961-11 1961-12
1961-01 292.337338 255.743002 264.805454 227.703065 146.093860 154.452835 157.976801 105.160769 78.330257 81.835803 78.048880 197.364513
1961-02 255.743002 422.704619 402.539279 353.437066 291.205423 236.587887 227.199386 205.653016 152.067422 121.629136 156.199113 245.437913
1961-03 264.805454 402.539279 588.085358 506.095484 426.997535 394.503941 311.457854 282.072157 243.688600 185.938841 185.070365 305.461220
1961-04 227.703065 353.437066 506.095484 634.350469 526.180900 482.653111 422.777319 323.453753 280.749314 242.065791 211.397170 294.971041
1961-05 146.093860 291.205423 426.997535 526.180900 628.659359 570.277532 499.460195 419.166450 325.582777 281.608607 269.847443 318.534683
1961-06 154.452835 236.587887 394.503941 482.653111 570.277532 728.132505 629.184846 527.767036 444.690514 330.643653 313.248427 382.803221
1961-07 157.976801 227.199386 311.457854 422.777319 499.460195 629.184846 753.550007 629.138725 536.407564 441.998603 352.570968 415.110922
1961-08 105.160769 205.653016 282.072157 323.453753 419.166450 527.767036 629.138725 729.423302 615.142484 506.155610 439.994837 430.992295
1961-09 78.330257 152.067422 243.688600 280.749314 325.582777 444.690514 536.407564 615.142484 744.225555 609.227136 527.489574 546.637590
1961-10 81.835803 121.629136 185.938841 242.065791 281.608607 330.643653 441.998603 506.155610 609.227136 697.805477 590.542045 604.681136
1961-11 78.048880 156.199113 185.070365 211.397170 269.847443 313.248427 352.570968 439.994837 527.489574 590.542045 706.960631 698.982589
1961-12 197.364513 245.437913 305.461220 294.971041 318.534683 382.803221 415.110922 430.992295 546.637590 604.681136 698.982589 913.698243
[17]:

from aeon.forecasting.naive import NaiveForecaster

forecaster = NaiveForecaster(sp=12)
forecaster.fit(y, fh=fh)

y_pred_dist = forecaster.predict_proba()
y_pred_dist

[17]:

<scipy.stats._distn_infrastructure.rv_frozen at 0x212693afd00>

[21]:

# obtaining quantiles
q1 = y_pred_dist.ppf(0.1)
q2 = y_pred_dist.ppf(0.9)
print("q1 = ", q1[0], " q2 = ", q2[0])

q1 =  [370.45950017 344.45950017 372.45950017 414.45950017 425.45950017
 488.45950017 575.45950017 559.45950017 461.45950017 414.45950017
 343.45950017 385.45950017]  q2 =  [463.54049983 437.54049983 465.54049983 507.54049983 518.54049983
 581.54049983 668.54049983 652.54049983 554.54049983 507.54049983
 436.54049983 478.54049983]
a note on consistence of methods#

Outputs of predict_interval, predict_quantiles, predict_var, predict_proba are typically but not necessarily consistent with each other!

Consistency is a weak interface requirement but not strictly enforced.

Probabilistic forecasting for multivariate and hierarchical data#

multivariate data: first column index for different variables

[ ]:

from aeon.datasets import load_longley
from aeon.forecasting.var import VAR

_, y = load_longley()

mv_forecaster = VAR()

mv_forecaster.fit(y, fh=[1, 2, 3])
# mv_forecaster.predict_var()

hierarchical data: probabilistic forecasts per level are row-concatenated with a row hierarchy index

[ ]:

from aeon.forecasting.arima import ARIMA
from aeon.testing.utils.data_gen import _make_hierarchical

y_hier = _make_hierarchical()
y_hier

[ ]:

forecaster = ARIMA()
forecaster.fit(y_hier, fh=[1, 2, 3])
forecaster.predict_interval()

(more about this in the hierarchical forecasting notebook)

Metrics for probabilistic forecasts and evaluation#

overview - theory#

Predicted y has different form from true y, so metrics have form

metric(y_true: series, y_pred: proba_prediction) -> float

where proba_prediction is the type of the specific “probabilistic prediction type”.

I.e., we have the following function signature for a loss/metric \(L\):

Name

param

prediction/estimate of

general form

point forecast

conditional expectation \(\mathbb{E}[y'\|y]\)

metric(y_true, y_pred)

variance forecast

conditional variance \(Var[y'\|y]\)

metric(y_pred, y_pt, y_var) (requires point forecast too)

quantile forecast

\(\alpha\in (0,1)\)

\(\alpha\)-quantile of \(y'\|y\)

metric(y_true, y_quantiles, alpha)

interval forecast

\(c\in (0,1)\)

\([a,b]\) s.t. \(P(a\le y' \le b\| y) = c\)

metric(y_true, y_interval, c)

distribution forecast

the law/distribution of \(y'\|y\)

metric(y_true, y_distribution)

metrics: general signature and averaging#

intro using the example of the quantile loss aka interval loss aka pinball loss, in the univariate case.

For one quantile value \(\alpha\), the (per-sample) pinball loss function is defined as
\(L_{\alpha}(\widehat{y}, y) := \alpha \cdot \Theta (y - \widehat{y}) + (1-\alpha) \cdot \Theta (\widehat{y} - y)\),
where \(\Theta (x) := [1\) if \(x\ge 0\) and \(0\) otherwise \(]\) is the Heaviside function.

This can be used to evaluate:

  • multiple quantile forecasts \(\widehat{\bf y}:=\widehat{y}_1, \dots, \widehat{y}_k\) for quantiles \({\bf \alpha} = \alpha_1,\dots, \alpha_k\) via \(L_{{\bf \alpha}}(\widehat{\bf y}, y) := \frac{1}{k}\sum_{i=1}^k L_{\alpha_i}(\widehat{y}_i, y)\)

  • interval forecasts \([\widehat{a}, \widehat{b}]\) at symmetric coverage \(c\) via \(L_c([\widehat{a},\widehat{b}], y) := \frac{1}{2} L_{\alpha_{low}}(\widehat{a}, y) + \frac{1}{2}L_{\alpha_{high}}(\widehat{b}, y)\) where \(\alpha_{low} = \frac{1-c}{2}, \alpha_{high} = \frac{1+c}{2}\)

(all are known to be strictly proper losses for their respective prediction object)

There are three things we can choose to average over:

  • quantile values, if multiple are predicted - elements of alpha in predict_interval(fh, alpha)

  • time stamps in the forecasting horizon fh - elements of fh in fit(fh) resp predict_interval(fh, alpha)

  • variables in y, in case of multivariate (later, first we look at univariate)

We will show quantile values and time stamps first:

  1. averaging by fh time stamps only -> one number per quantile value in alpha

  2. averaging over nothing -> one number per quantile value in alpha and fh time stamp

  3. averaging over both fh and quantile values in alpha -> one number

first, generating some quantile predictions. pred_quantiles now contains quantile forecasts
formally, forecasts \(\widehat{y}_j(t_i)\) where \(\widehat{y_j}\) are forecasts at quantile \(\alpha_j\), with range \(i=1\dots N, j=1\dots k\)
\(\alpha_j\) are the elements of alpha, and \(t_i\) are the future time stamps indexed by fh
[ ]:

import numpy as np

from aeon.datasets import load_airline
from aeon.forecasting.theta import ThetaForecaster

y_train = load_airline()[0:24]  # train on 24 months, 1949 and 1950
y_test = load_airline()[24:36]  # ground truth for 12 months in 1951

# try to forecast 12 months ahead, from y_train
fh = np.arange(1, 13)

forecaster = ThetaForecaster(sp=12)
forecaster.fit(y_train, fh=fh)

pred_quantiles = forecaster.predict_quantiles(alpha=[0.1, 0.25, 0.5, 0.75, 0.9])
pred_quantiles

  1. computing the loss by quantile point or interval end, averaged over fh time stamps i.e., \(\frac{1}{N} \sum_{i=1}^N L_{\alpha}(\widehat{y}(t_i), y(t_i))\) for \(t_i\) in the fh, and every alpha, this is one number per quantile value in alpha

[ ]:

from aeon.performance_metrics.forecasting.probabilistic import PinballLoss

loss = PinballLoss(score_average=False)
loss(y_true=y_test, y_pred=pred_quantiles)

  1. computing the the individual loss values, by sample, no averaging, i.e., \(L_{\alpha}(\widehat{y}(t_i), y(t_i))\) for every \(t_i\) in fh and every \(\alpha\) in alpha this is one number per quantile value \(\alpha\) in alpha and time point \(t_i\) in fh

[ ]:

loss.evaluate_by_index(y_true=y_test, y_pred=pred_quantiles)

  1. computing the loss for a multiple quantile forecast, averaged over fh time stamps and quantile values alpha i.e., \(\frac{1}{Nk} \sum_{j=1}^k\sum_{i=1}^N L_{\alpha_j}(\widehat{y_j}(t_i), y(t_i))\) for \(t_i\) in fh, and quantile values \(\alpha_j\), this is a single number that can be used in tuning (e.g., grid search) or evaluation overall

[ ]:

from aeon.performance_metrics.forecasting.probabilistic import PinballLoss

loss_multi = PinballLoss(score_average=True)
loss_multi(y_true=y_test, y_pred=pred_quantiles)

  1. computing the loss for a multiple quantile forecast, averaged quantile values alpha, for individual time stamps i.e., \(\frac{1}{k} \sum_{j=1}^k L_{\alpha_j}(\widehat{y_j}(t_i), y(t_i))\) for \(t_i\) in fh, and quantile values \(\alpha_j\), this is a univariate time series at fh times \(t_i\), it can be used for tuning or evaluation by horizon index

[ ]:

loss_multi.evaluate_by_index(y_true=y_test, y_pred=pred_quantiles)

Question: why is score_average a constructor flag, and evaluate_by_index a method?

  • not all losses are “by index”, so evaluate_by_index logic can vary (e.g., pseudo-samples)

  • constructor args define “mathematical object” of scientific signature: series -> non-temporal object methods define action or “way to apply”, e.g., as used in tuning or reporting

Compare score_average to multioutput arg in scikit-learn metrics and aeon.

metrics: interval vs quantile metrics#

Interval and quantile metrics can be used interchangeably:

internally, these are easily convertible to each other
recall: lower/upper interval = quantiles at \(\frac{1}{2} \pm \frac{1}2\) coverage
[ ]:

pred_interval = forecaster.predict_interval(coverage=0.8)
pred_interval

loss object recognizes an input type automatically and computes the corresponding interval loss

[ ]:

loss(y_true=y_test, y_pred=pred_interval)

[ ]:

loss_multi(y_true=y_test, y_pred=pred_interval)

evaluation by backtesting#

[ ]:

from aeon.datasets import load_airline
from aeon.forecasting.model_evaluation import evaluate
from aeon.forecasting.model_selection import ExpandingWindowSplitter
from aeon.forecasting.theta import ThetaForecaster
from aeon.performance_metrics.forecasting.probabilistic import PinballLoss

# 1. define data
y = load_airline()

# 2. define splitting/backtesting regime
fh = [1, 2, 3]
cv = ExpandingWindowSplitter(step_length=12, fh=fh, initial_window=72)

# 3. define loss to use
loss = PinballLoss()
# default is score_average=True and multi_output="uniform_average", so gives a number

forecaster = ThetaForecaster(sp=12)
results = evaluate(
    forecaster=forecaster, y=y, cv=cv, strategy="refit", return_data=True, scoring=loss
)
results.iloc[:, :5].head()

  • each row is one train/test split in the walkforward setting

  • first col is the loss on the test fold

  • last two columns summarise length of training window, cutoff between train/test

roadmap items:

implementing further metrics

  • distribution prediction metrics - may need tfp extension

  • advanced evaluation set-ups

  • variance loss

contributions are appreciated!

Advanced composition: pipelines, tuning, reduction, adding proba forecasts to any estimator#

composition = constructing “composite” estimators out of multiple “component” estimators

  • reduction = building estimator type A using estimator type B

    • special case: adding proba forecasting capability to non-proba forecaster

    • special case: using proba supervised learner for proba forecasting

  • pipelining = chaining estimators, here: transformers to a forecaster

  • tuning = automated hyperparameter fitting, usually via internal evaluation loop

    • special case: grid parameter search and random parameter search tuning

    • special case: “Auto-ML”, optimising not just estimator hyperparameter but also choice of estimator

Adding probabilistic forecasts to non-probabilistic forecasters#

start with a forecaster that does not produce probabilistic predictions:

[ ]:

from aeon.forecasting.exp_smoothing import ExponentialSmoothing

my_forecaster = ExponentialSmoothing()

# does the forecaster support probabilistic predictions?
my_forecaster.get_tag("capability:pred_int")

adding probabilistic predictions is possible via reduction wrappers:

[ ]:

# NaiveVariance adds intervals & variance via collecting past residuals
from aeon.forecasting.naive import NaiveVariance

# create a composite forecaster like this:
my_forecaster_with_proba = NaiveVariance(my_forecaster)

# does it support probabilistic predictions now?
my_forecaster_with_proba.get_tag("capability:pred_int")

the composite can now be used like any probabilistic forecaster:

[ ]:

y = load_airline()

my_forecaster_with_proba.fit(y, fh=[1, 2, 3])
my_forecaster_with_proba.predict_interval()

roadmap items:

more compositors to enable probabilistic forecasting

  • bootstrap forecast intervals

  • reduction to probabilistic supervised learning

  • popular “add probabilistic capability” wrappers

contributions are appreciated!

Tuning and AutoML#

tuning and autoML with probabilistic forecasters works exactly like with “ordinary” forecasters
via ForecastingGridSearchCV or ForecastingRandomSearchCV

  • change metric to tune to a probabilistic metric

  • use a corresponding probabilistic metric or loss function

Internally, evaluation will be done using probabilistic metric, via backtesting evaluation.

important: to evaluate the tuned estimator, use it in evaluate or a separate benchmarking workflow.
Using internal metric/loss values amounts to in-sample evaluation, which is over-optimistic.
[ ]:

from aeon.forecasting.model_selection import (
    ForecastingGridSearchCV,
    SlidingWindowSplitter,
)
from aeon.forecasting.theta import ThetaForecaster
from aeon.performance_metrics.forecasting.probabilistic import PinballLoss

# forecaster we want to tune
forecaster = ThetaForecaster()

# parameter grid to search over
param_grid = {"sp": [1, 6, 12]}

# evaluation/backtesting regime for *tuning*
fh = [1, 2, 3]  # fh for tuning regime, does not need to be same as in fit/predict!
cv = SlidingWindowSplitter(window_length=36, fh=fh)
scoring = PinballLoss()

# construct the composite forecaster with grid search compositor
gscv = ForecastingGridSearchCV(
    forecaster, cv=cv, param_grid=param_grid, scoring=scoring, strategy="refit"
)

[ ]:

from aeon.datasets import load_airline

y = load_airline()[:60]

gscv.fit(y, fh=fh)

inspect hyperparameter fit obtained by tuning:

[ ]:

gscv.best_params_

obtain predictions:

[ ]:

gscv.predict_interval()

for AutoML, use the MultiplexForecaster to select among multiple forecasters:

[ ]:

from aeon.forecasting.compose import MultiplexForecaster
from aeon.forecasting.exp_smoothing import ExponentialSmoothing

forecaster = MultiplexForecaster(
    forecasters=[
        ("naive", NaiveForecaster(strategy="last")),
        ("ets", ExponentialSmoothing(trend="add", sp=12)),
    ],
)

forecaster_param_grid = {"selected_forecaster": ["ets", "naive"]}
gscv = ForecastingGridSearchCV(forecaster, cv=cv, param_grid=forecaster_param_grid)

gscv.fit(y)
gscv.best_params_

Pipelines with probabilistic forecasters#

aeon pipelines are compatible with probabilistic forecasters:

  • ForecastingPipeline applies transformers to the exogeneous X argument before passing them to the forecaster

  • TransformedTargetForecaster transforms y and back-transforms forecasts, including interval or quantile forecasts

ForecastingPipeline takes a chain of transformers and forecasters, say,

[t1, t2, ..., tn, f],

where t[i] are forecasters that pre-process, and tp[i] are forecasters that postprocess

fit(y, X, fh) does:#
X1 = t1.fit_transform(X)
X2 = t2.fit_transform(X1)
etc
X[n] = t3.fit_transform(X[n-1])

f.fit(y=y, x=X[n])

predict_[sth](X, fh) does:#
X1 = t1.transform(X)
X2 = t2.transform(X1)
etc
X[n] = t3.transform(X[n-1])

f.predict_[sth](X=X[n], fh)

[ ]:

from aeon.datasets import load_macroeconomic
from aeon.forecasting.arima import ARIMA
from aeon.forecasting.compose import ForecastingPipeline
from aeon.forecasting.model_selection import temporal_train_test_split
from aeon.transformations.impute import Imputer

[ ]:

data = load_macroeconomic()
y = data["unemp"]
X = data.drop(columns=["unemp"])

y_train, y_test, X_train, X_test = temporal_train_test_split(y, X)

[ ]:

forecaster = ForecastingPipeline(
    steps=[
        ("imputer", Imputer(method="mean")),
        ("forecaster", ARIMA(suppress_warnings=True)),
    ]
)
forecaster.fit(y=y_train, X=X_train, fh=X_test.index[:5])
forecaster.predict_interval(X=X_test[:5])

TransformedTargetForecaster takes a chain of transformers and forecasters, say,

[t1, t2, ..., tn, f, tp1, tp2, ..., tk],

where t[i] are forecasters that pre-process, and tp[i] are forecasters that postprocess

fit(y, X, fh) does:#
y1 = t1.fit_transform(y)
y2 = t2.fit_transform(y1)
y3 = t3.fit_transform(y2)
etc
y[n] = t3.fit_transform(y[n-1])

f.fit(y[n])

yp1 = tp1.fit_transform(yn)
yp2 = tp2.fit_transform(yp1)
yp3 = tp3.fit_transform(yp2)
etc
predict_quantiles(y, X, fh) does:#
y1 = t1.transform(y)
y2 = t2.transform(y1)
etc
y[n] = t3.transform(y[n-1])

y_pred = f.predict_quantiles(y[n])

y_pred = t[n].inverse_transform(y_pred)
y_pred = t[n-1].inverse_transform(y_pred)
etc
y_pred = t1.inverse_transform(y_pred)
y_pred = tp1.transform(y_pred)
y_pred = tp2.transform(y_pred)
etc
y_pred = tp[n].transform(y_pred)

Note: the remaining proba predictions are inferred from predict_quantiles.

[ ]:

from aeon.datasets import load_macroeconomic
from aeon.forecasting.arima import ARIMA
from aeon.forecasting.compose import TransformedTargetForecaster
from aeon.transformations.detrend import Deseasonalizer, Detrender

[ ]:

data = load_macroeconomic()
y = data[["unemp"]]

[ ]:

forecaster = TransformedTargetForecaster(
    [
        ("deseasonalize", Deseasonalizer(sp=12)),
        ("detrend", Detrender()),
        ("forecast", ARIMA()),
    ]
)

forecaster.fit(y, fh=[1, 2, 3])
forecaster.predict_interval()

[ ]:

forecaster.predict_quantiles()

quick creation is also possible via the * dunder method, same pipeline:

[ ]:

forecaster = Deseasonalizer(sp=12) * Detrender() * ARIMA()

[ ]:

forecaster.fit(y, fh=[1, 2, 3])
forecaster.predict_interval()

Building your own probabilistic forecaster#

Getting started:

Extension template = python “fill-in” template with to-do blocks that allow you to implement your own, aeon-compatible forecasting algorithm.

Check estimators using check_estimator

For probabilistic forecasting:

  • implement at least one of predict_quantiles, predict_interval, predict_var, predict_proba

  • optimally, implement all, unless identical with defaulting behaviour as below

  • if only one is implemented, others use the following defaults (in this sequence, dependent availability):

    • predict_interval uses quantiles from predict_quantiles and vice versa

    • predict_var uses variance from predict_proba, or variance of normal with IQR as obtained from predict_quantiles

    • predict_interval or predict_quantiles uses quantiles from predict_proba distribution

    • predict_proba returns normal with mean predict and variance predict_var

  • so if predictive residuals not normal, implement predict_proba or predict_quantiles

  • if interfacing, implement the ones where least “conversion” is necessary

  • ensure to set the capability:pred_int tag to True

[ ]:

# estimator checking on the fly using check_estimator

# suppose this is your new estimator
from aeon.forecasting.naive import NaiveForecaster
from aeon.utils.estimator_checks import check_estimator

# check the estimator like this:
check_estimator(NaiveForecaster, tests_to_run=["test_constructor"])
# this prints any failed tests, and returns dictionary with
#   keys of test runs and results from the test run
# run individual tests using the tests_to_run arg or the fixtures_to_run_arg
#   these need to be identical to test or test/fixture names, see docstring
#   runs all tests by default
# to raise errors for use in traceback debugging, set raise_exceptions=True

Summary#

  • unified API for probabilistic forecasting and probabilistic metrics

  • integrating other packages (e.g. scikit-learn, statsmodels, pmdarima, prophet)

  • interface for composite model building is same, proba or not (pipelining, ensembling, tuning, reduction)

  • easily extensible with custom estimators

Useful resources#

Generated using nbsphinx. The Jupyter notebook can be found here.
