Time Series Similarity search with aeon¶
The goal of Time Series Similarity search is to asses the similarities between a time series, denoted as a query q
of length l
, and a collection of time series, denoted as X
, which lengths are superior or equal to l
. In this context, the notion of similiarity between q
and the other series in X
is quantified by similarity functions. Those functions are most of the time defined as distance function, such as the Euclidean distance. Knowing the similarity between q
and
other admissible candidates, we can then perform many other tasks for “free”, such as anomaly or motif detection.
[18]:
def plot_best_matches(top_k_search, best_matches):
fig, ax = plt.subplots(figsize=(20, 5), ncols=3)
for i_k, (id_sample, id_timestamp) in enumerate(best_matches):
# plot the sample of the best match
ax[i_k].plot(top_k_search.X_[id_sample, 0], linewidth=2)
# plot the location of the best match on it
ax[i_k].plot(
range(id_timestamp, id_timestamp + q.shape[1]),
top_k_search.X_[id_sample, 0, id_timestamp : id_timestamp + q.shape[1]],
linewidth=7,
alpha=0.5,
color="green",
label="best match location",
)
# plot the query on the location of the best match
ax[i_k].plot(
range(id_timestamp, id_timestamp + q.shape[1]),
q[0],
linewidth=5,
alpha=0.5,
color="red",
label="query",
)
ax[i_k].set_title(f"best match {i_k}")
ax[i_k].legend()
plt.show()
def plot_matrix_profile(X, mp, i_k):
fig, ax = plt.subplots(figsize=(20, 10), nrows=2)
ax[0].set_title("series X used to build the matrix profile")
ax[0].plot(X[0]) # plot first channel only
# This is necessary as mp is a list of arrays due to unequal length support
# as it can have different number of matches for each step when
# using threshold-based search.
ax[1].plot([mp[i][i_k] for i in range(len(mp))])
ax[1].set_title(f"Top {i_k+1} matrix profile of X")
ax[1].set_ylabel(f"Dist to top {i_k+1} match")
ax[1].set_xlabel("Starting index of the query in X")
plt.show()
Similarity search Notebooks¶
This notebook gives an overview of similarity search module and the available estimators. The following notebooks are avaiable to go more in depth with specific subject of similarity search in aeon:
Expected inputs and format¶
For both QuerySearch
and SeriesSearch
, the fit
method expects a time series dataset of shape (n_cases, n_channels, n_timepoints)
. This can be 3D numpy array or a list of 2D numpy arrays if n_timepoints
varies between cases (i.e. unequal length dataset).
The predict
method expects a 2D numpy array of shape (n_channels, query_length)
for QuerySearch
. In SeriesSearch
, the predict methods also expects a 2D numpy array, but of shape (n_channels, n_timepoints)
(n_timepoints
doesn’t have to be the same as in fit) and a query_length
parameter.
Available estimators¶
All estimators of the similarity search module in aeon inherit from the BaseSimilaritySearch
class, which requires the following arguments: - distance
: a string indicating which distance function to use as similarity function. By default this is "euclidean"
, which means that the Euclidean distance is used. - normalize
: a boolean indicating whether this similarity function should be z-normalized. This means that the scale of the two series being compared will be ignored, and
that, loosely speaking, we will only focus on their shape during the comparison. By default, this parameter is set False
.
Another parameter, which has no effect on the output of the estimators, is a boolean named store_distance_profile
, set to False
by default. If set to True
, the estimators will expose an attribute named _distance_profile
after the predict
function is called. This attribute will contain the computed distance profile for query given as input to the predict
function.
To illustrate how to work with similarity search estimators in aeon, we will now present some example use cases.
Query search¶
We will use the GunPoint dataset for this example, which can be loaded using the load_classification
function.
[2]:
import numpy as np
from matplotlib import pyplot as plt
from aeon.datasets import load_classification
# Load GunPoint dataset
X, y = load_classification("GunPoint")
classes = np.unique(y)
fig, ax = plt.subplots(figsize=(20, 5), ncols=len(classes))
for i_class, _class in enumerate(classes):
for i_x in np.where(y == _class)[0][0:2]:
ax[i_class].plot(X[i_x, 0], label=f"sample {i_x}")
ax[i_class].legend()
ax[i_class].set_title(f"class {_class}")
plt.suptitle("Example samples for the GunPoint dataset")

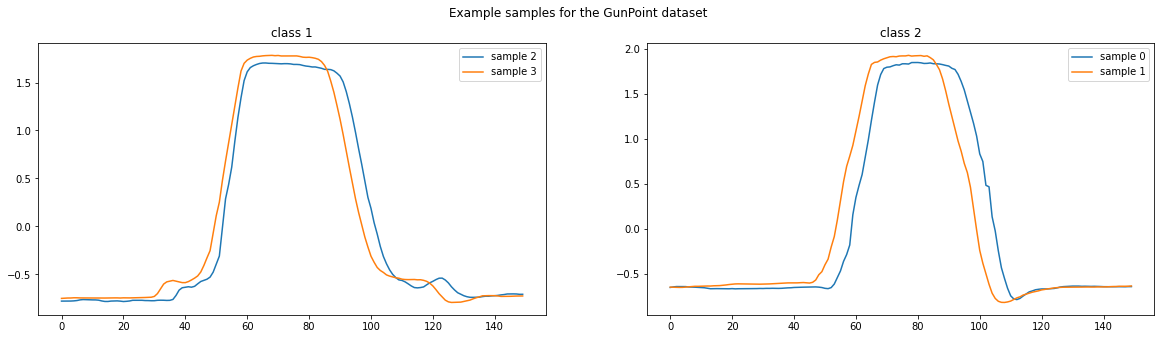

plt.show()
The GunPoint dataset is composed of two classes which are discriminated by the “bumps” located before and after the central peak. These bumps correspond to an actor drawing a fake gun from a holster before pointing it (hence the name “GunPoint” !). In the second class, the actor simply points his fingers without making the motion of taking the gun out of the holster.
Suppose that we define our input query for the similarity search task as one of these bumps:
[3]:
# We will use the fourth sample an testing data
X_test = X[3]
mask = np.ones(X.shape[0], dtype=bool)
mask[3] = False
# Use this mask to exluce the sample from which we will extract the query
X_train = X[mask]
q = X_test[:, 20:55]
plt.plot(q[0])
plt.show()
Then, we can use the QuerySearch
class to search for the top k
matches of this query in a collection of series. The training data for QuerySearch
can be seen as the database in which want to search for the query on.
[4]:
from aeon.similarity_search import QuerySearch
# Here, the distance function (distance and normalize arguments)
top_k_search = QuerySearch(k=3, distance="euclidean")
# Call fit to store X_train as the database to search in
top_k_search.fit(X_train)
distances_to_matches, best_matches = top_k_search.predict(q)
for i in range(len(best_matches)):
print(f"match {i} : {best_matches[i]} with distance {distances_to_matches[i]} to q")
C:\Users\antoine\Documents\aeon\aeon\base\__init__.py:24: FutureWarning: The aeon package will soon be releasing v1.0.0 with the removal of legacy modules and interfaces such as BaseTransformer and BaseForecaster. This will contain breaking changes. See aeon-toolkit.org for more information. Set aeon.AEON_DEPRECATION_WARNING or the AEON_DEPRECATION_WARNING environmental variable to 'False' to disable this warning.
warnings.warn(
match 0 : [195 26] with distance 0.1973741999473598 to q
match 1 : [92 23] with distance 0.20753669049486048 to q
match 2 : [154 22] with distance 0.21538593730366784 to q
The similarity search estimators return a list of size k
, which contains a tuple containing the location of the best matches as (id_sample, id_timestamp)
. We can then plot the results as:
[5]:

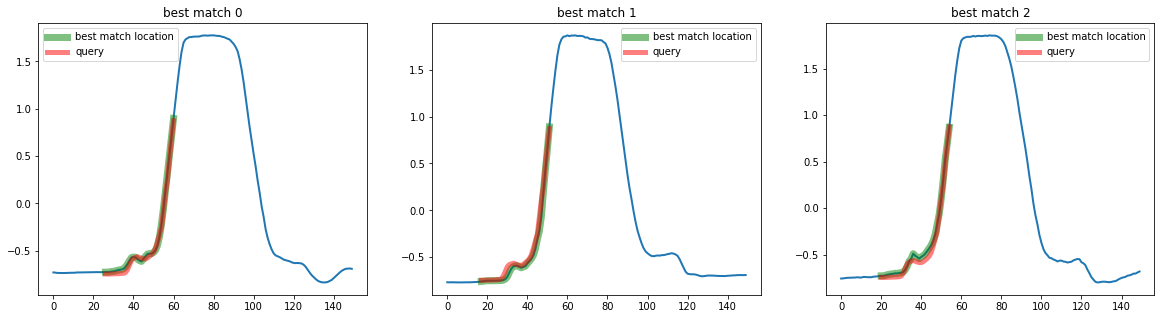

plot_best_matches(top_k_search, best_matches)
You may also want to search not for the top-k matches, but for all matches below a threshold on the distance from the query to a candidate. To do so, you can use the threshold
parameter of QuerySearch
:
[6]:
# Here, the distance function (distance and normalize arguments)
top_k_search = QuerySearch(k=np.inf, threshold=0.25, distance="euclidean")
top_k_search.fit(X_train)
distances_to_matches, best_matches = top_k_search.predict(q)
for i in range(len(best_matches)):
print(f"match {i} : {best_matches[i]} with distance {distances_to_matches[i]} to q")
match 0 : [195 26] with distance 0.1973741999473598 to q
match 1 : [92 23] with distance 0.20753669049486048 to q
match 2 : [154 22] with distance 0.21538593730366784 to q
match 3 : [176 25] with distance 0.21889484294879047 to q
match 4 : [23 20] with distance 0.22668346183441293 to q
match 5 : [167 23] with distance 0.24774491003815066 to q
C:\Users\antoine\Documents\aeon\aeon\similarity_search\query_search.py:277: UserWarning: Only 6 matches are bellow the threshold of 0.25, while k=inf. The number of returned match will be 6.
return extract_top_k_and_threshold_from_distance_profiles(
You may also combine the k
and threshold
parameter :
[7]:
# Here, the distance function (distance and normalize arguments)
top_k_search = QuerySearch(k=3, threshold=0.25, distance="euclidean")
top_k_search.fit(X_train)
distances_to_matches, best_matches = top_k_search.predict(q)
for i in range(len(best_matches)):
print(f"match {i} : {best_matches[i]} with distance {distances_to_matches[i]} to q")
match 0 : [195 26] with distance 0.1973741999473598 to q
match 1 : [92 23] with distance 0.20753669049486048 to q
match 2 : [154 22] with distance 0.21538593730366784 to q
It is also possible to return the worst matches to the query, by using the inverse_distance
parameter :
[8]:
# Here, the distance function (distance and normalize arguments)
top_k_search = QuerySearch(k=3, inverse_distance=True, distance="euclidean")
top_k_search.fit(X_train)
distances_to_matches, best_matches = top_k_search.predict(q)

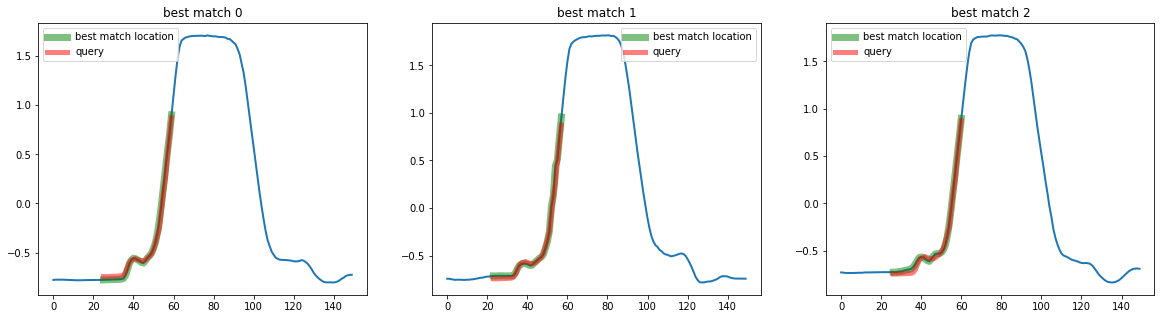

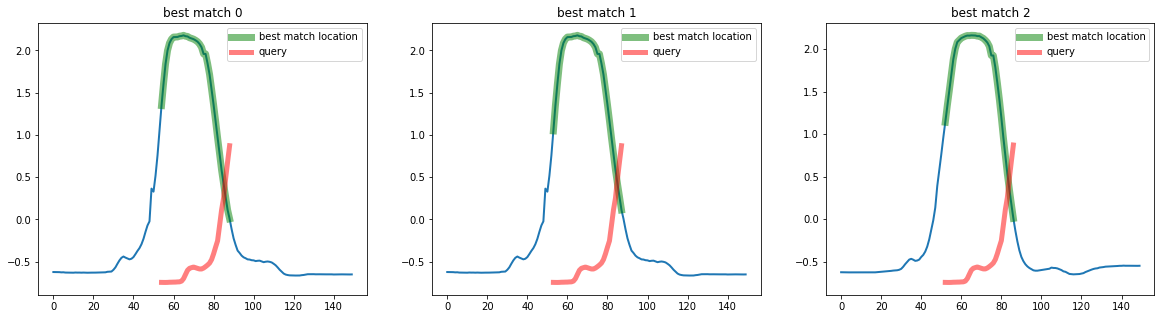

plot_best_matches(top_k_search, best_matches)
Using other distance functions¶
You can use any distance from the aeon distance module in the similarity search module. You can obtain a list of all available distances by using the following:
[9]:
from aeon.distances import get_distance_function_names
get_distance_function_names()
[9]:
['adtw',
'ddtw',
'dtw',
'edr',
'erp',
'euclidean',
'lcss',
'manhattan',
'minkowski',
'msm',
'sbd',
'shape_dtw',
'squared',
'twe',
'wddtw',
'wdtw']
You can also specify keyword arguments using the distance_args
parameter of any estimator inheriting from BaseSimilaritySearch
, such as the QuerySearch
estimator. For example using the w
parameter for dtw
, which specify the warping size:
[10]:
top_k_search = QuerySearch(k=3, distance="dtw", distance_args={"w": 0.2})
q = X[3, :, 20:55]
mask = np.ones(X.shape[0], dtype=bool)
mask[3] = False
# Use this mask to exluce the sample from which we extracted the query
X_train = X[mask]
# Call fit to store X_train as the database to search in
top_k_search.fit(X_train)
distances_to_matches, best_matches = top_k_search.predict(q)
print(best_matches)
[[195 26]
[128 17]
[155 20]]
[11]:

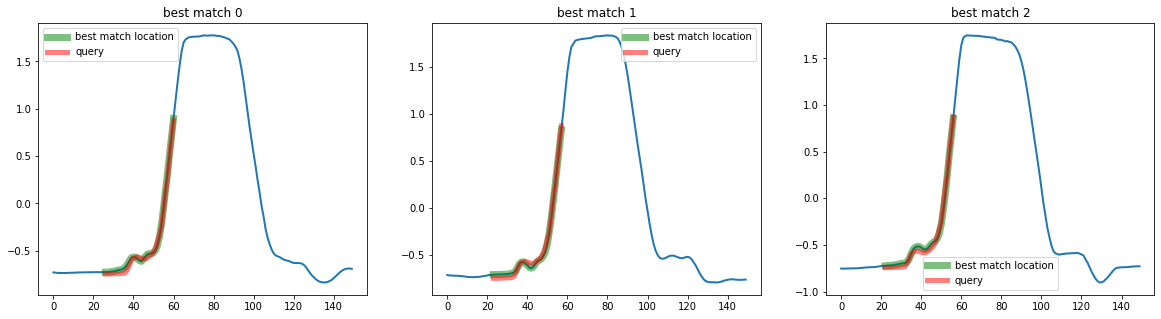

plot_best_matches(top_k_search, best_matches)
Using you own distance functions¶
You can also create you own distance funcion and pass it in the distance parameter :
[12]:
def my_dist(x, y):
return np.sum(np.abs(x - y))
top_k_search = QuerySearch(k=3, distance=my_dist)
q = X[3, :, 20:55]
mask = np.ones(X.shape[0], dtype=bool)
mask[3] = False
# Use this mask to exluce the sample from which we extracted the query
X_train = X[mask]
# Call fit to store X_train as the database to search in
top_k_search.fit(X_train)
distances_to_matches, best_matches = top_k_search.predict(q)
print(best_matches)
[[176 25]
[ 64 23]
[195 26]]
[13]:
plot_best_matches(top_k_search, best_matches)
Internally, we will try to compile this function using numba. Errors might appear if your function use operations unsported by numba (see numba docs). You could also disable numba using numba.config.DISTABLE_JIT = True
, but the code will run a lot slower.
Using the speed_up option for similarity search¶
In the similarity search module, we implement different kind of optimization to decrease the time necessary to extract the best matches to a query. You can find more information about these optimization in the other notebooks of the similarity search module. An utility function is available to list the optimizations currently implemented in aeon :
[14]:
QuerySearch.get_speedup_function_names()
[14]:
{'normalized euclidean': ['fastest', 'Mueen', 'naive'],
'euclidean': ['fastest', 'Mueen', 'naive'],
'normalized squared': ['fastest', 'Mueen', 'naive'],
'squared': ['fastest', 'Mueen', 'naive']}
By default, the fastest
option is used, which use the best optimisation available. You can change this behavior by using the values of t with the corresponding distance function and normalization options in the estimators, for example with a QuerySearch
using the normalized euclidean
distance:
[15]:
top_k_search = QuerySearch(distance="euclidean", normalize=True, speed_up="Mueen")
For more information on these optimizations you can refer to the distance profile notebook for the theory, and to the analysis of the speedups provided by similarity search module for a comparison of their performance.
Series search¶
For series search, we are not interest in exploring the relationship of the input dataset X
(given in fit
) and a single query, but to all queries of size query_length
that exists in another time series T
. For example, with using again our simple GunPoint dataset:
[24]:
from aeon.similarity_search import SeriesSearch
query_length = 35
estimator = SeriesSearch(distance="euclidean").fit(X_train) # X_test is a 3D array
mp, ip = estimator.predict(X_test, query_length) # X_test is a 2D array

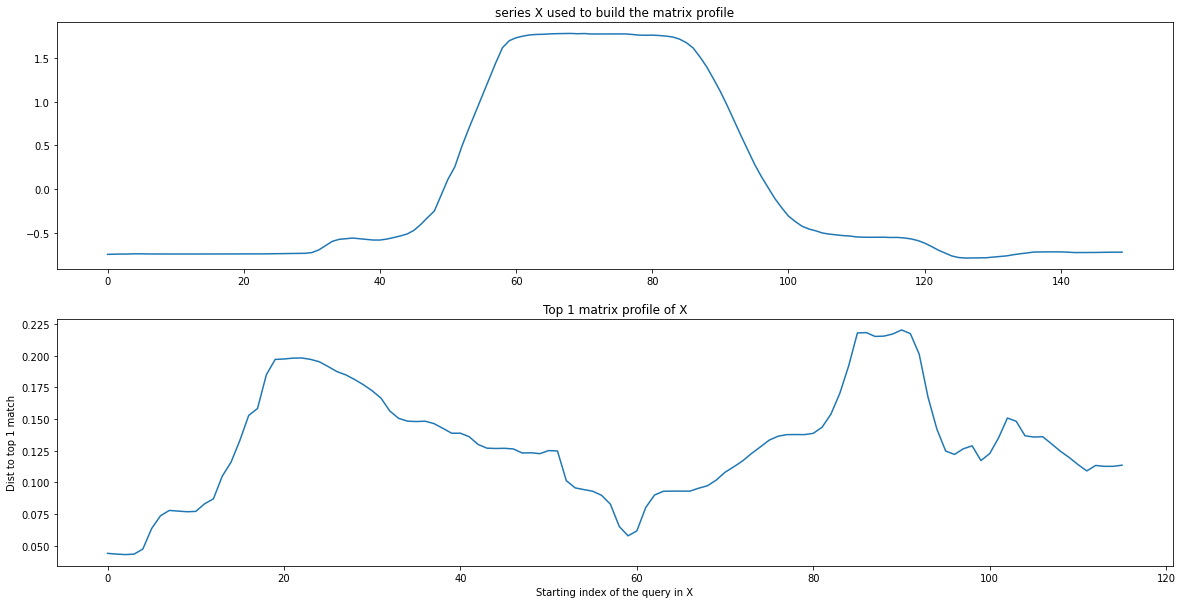

plot_matrix_profile(X_test, mp, 0)
print(f"Index of the 20-th query best matches : {ip[20]}")
Index of the 20-th query best matches : [[195 26]]
Notice that we find the same best match for the 20-ith query, which was the query that we used for QuerySearch
!
SeriesSearch
returns two lists, mp
and ip
, which respectively contain the distances to the best matches of all queries of size query_length
in X_test
(the i-th
query being X_test[:, i : i + query_length]
) and the indexes of these best matches in X_train
in the (ix_case, ix_timepoint)
format, such as X_train[ix_case, :, ix_timepoint : ix_timepoint + query_length]
will be the matching subsquence.
Most of the options (k
, threshold
, inverse_distance
, etc.) from QuerySearch
are also available for SeriesSearch
.
[ ]:
Generated using nbsphinx. The Jupyter notebook can be found here.
